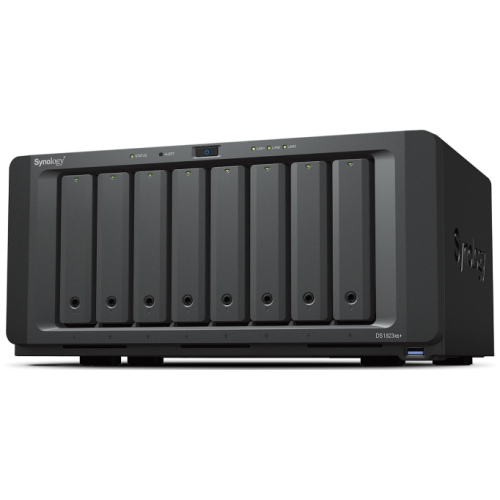

The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available.
Hardware Specifications |
||
|---|---|---|
CPU |
||
|
CPU
|
CPU Model | AMD Ryzen V1780B |
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 4-core 3.35 (base) / 3.6 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
Memory |
||
|
Memory
|
System Memory | 8 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
Storage |
||
|
Storage
|
Drive Bays | 8 |
| Maximum Drive Bays with Expansion Unit | 18 (DX517 x 2) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Compatible Drive Type* (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes |
|
|
External Ports |
||
|
External Ports
|
RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 1 | |
| Out-of-Band Management LAN Port | 1 | |
| USB 3.2 Gen 1 Port* | 3 | |
| eSATA Port | 2 | |
| Notes | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
PCIe |
||
|
PCIe
|
PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
File System |
||
|
File System
|
Internal Drives |
|
| External Drives |
|
|
Appearance |
||
|
Appearance
|
Size (Height x Width x Depth) | 166 mm x 343 mm x 243 mm |
| Weight | 6.2 kg | |
Others |
||
|
Others
|
System Fan | 120 mm x 120 mm x 2 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan | ||
| Brightness Adjustable Front LED Indicators | ||
| Power Recovery | ||
| Noise Level* | 23.6 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 250 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption |
87.93 W (Access) 28.37 W (HDD Hibernation) |
|
| British Thermal Unit |
300.23 BTU/hr (Access) 96.87 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
Temperature |
||
|
Temperature
|
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification |
||
|
Certification
|
|
|
Warranty |
||
|
Warranty
|
5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment |
||
|
Environment
|
RoHS Compliant | |
Packaging Content |
||
|
Packaging Content
|
|
|
Optional Accessories |
||
|
Optional Accessories
|
||
